PRODUCT SCENE VISUALIZATION Back to industrial systemsHEAVY LIFT / CIVILIAN INTEGRATIONRT100

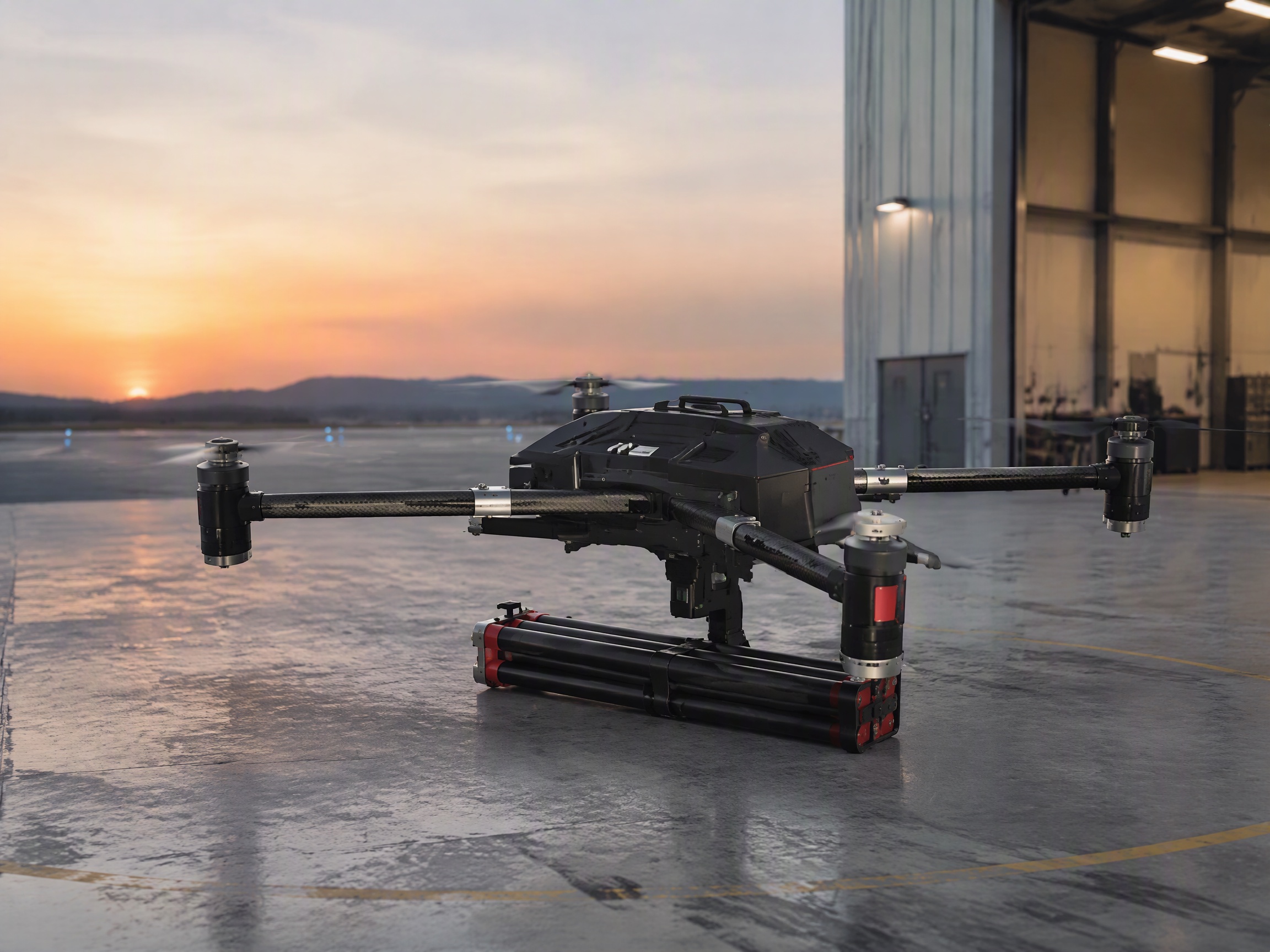

Heavy-Lift Coaxial UAV Platform
A carbon-fiber, four-axis eight-propeller platform for payload transport and project-specific civilian integration.
- Standard payload
- 30 kg
- Max. takeoff weight
- 114 kg
- Endurance
- 40 min
- Positioning
- RTK · ±0.5 m
Request product details More models and documents available by inquiry
01 / PRODUCT OVERVIEW
Made for a clearly defined use case.
RT100 is positioned for buyers who need a configurable heavy-lift aircraft rather than a consumer drone. Payload, endurance, flight environment and integration details are confirmed for each inquiry.
02 / SPECIFICATIONS
Technical data
Based on the product material supplied for this website. Final configuration is confirmed for each inquiry.
- Material
- Carbon fiber + aviation aluminum
- Rotor configuration
- 4-axis / 8-propeller
- Propeller
- 43-inch folding propeller
- Expanded size
- 1540 × 1540 × 760 mm
- Folded size
- 870 × 830 × 760 mm
- Wheelbase
- 2000 mm
- Aircraft weight
- 32 kg
- Battery weight
- 32 kg
- Standard payload
- 30 kg
- Maximum takeoff weight
- 114 kg
- Endurance
- 40 min
- Maximum flight speed
- 20 m/s
- Positioning system
- RTK
- Positioning accuracy
- ±0.5 m
03 / BUYER FIT
Built for organizations that buy with a defined purpose.
Who this model may fit
- Civilian UAV system integrators
- Industrial equipment and payload teams
- Project suppliers evaluating a 30 kg platform
What to include in your inquiry
- Payload weight and dimensions
- Target endurance and operating environment
- Expected quantity and destination country
CONFIGURATION & DOCUMENTATION
Prepare an inquiry
